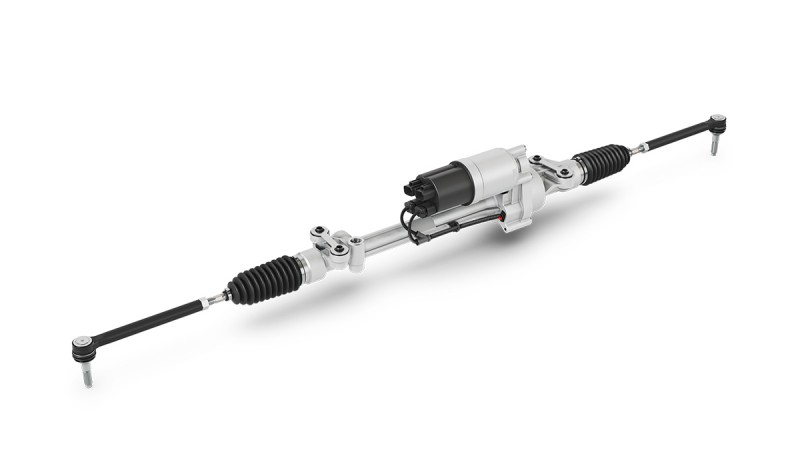

Road Wheel Actuator
The Schaeffler Road Wheel Actuator (RWA), featuring a dedicated steer-by-wire architecture, enables dynamic and precise vehicle control as well as direct driver feedback without a mechanical connection. This innovative platform concept replaces traditional steering systems in vehicles with front-wheel steering and improves both the driving experience and safety. Suitable for all vehicle segments up to SUVs and light trucks, the RWA offers numerous customization options and maximum installation flexibility thanks to optimal packaging.
Highlights
- Ready for automated driving
- Replacing the mechanical connection by customizable and driver-oriented road feedback and road disturbances
- Dynamic and precise vehicle guidance
Advantages
- Utilization of Schaeffler's complete vertical integration chain, e.g., in-house ball screw drive and production know-how
- Improved safety through decoupling of driver and coordination with other vehicle systems
- Realization of new vehicle dynamic functions by software, e.g., variable gear ratio
- Packaging and standardization (e.g., left- and right-hand drive) benefits leading to cost savings
Features
- Road wheel actuator in "fail-operational" version
- Dynamic and precise vehicle guidance and driver feedback, even without a mechanical connection
- Supports all vehicle segments, up to SUVs and light trucks
Active steering force
Up to 20 kN
Stroke
Up to 112 mm
Speed
Up to 140 mm/s
