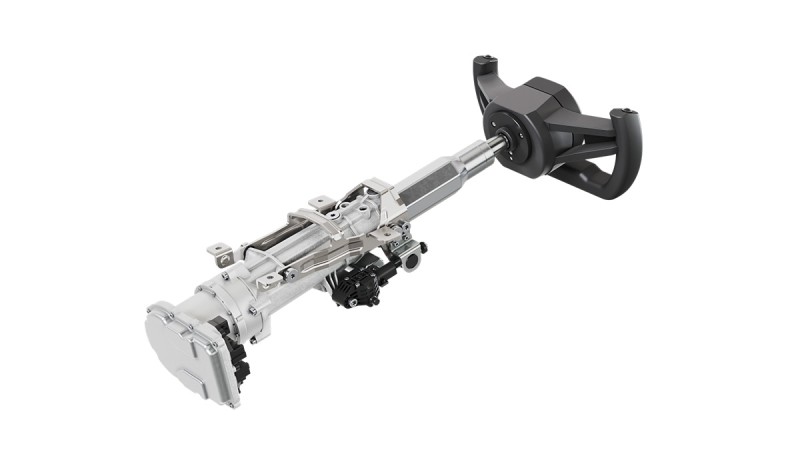

Hand Wheel Actuator
The prerequisite for highly automated driving is the removal of the mechanical connection between steering wheel and steering gear. The Hand Wheel Actuator senses the commands from the driver and transmits these "by-wire" as electronic signals. This Hand Wheel Actuator is based on a versatile platform: It contains a Force Feedback Actuator, creating a steer feel adaptable to customer requirements. Scalable axial adjust- and stowability result in comfortable space gains for the driver and allow new interior concepts.
Highlights
- Enabler for innovative interior concepts
- Innovative torque management for optimum steer feel
- Scalable axial adjust- and stowability
Advantages
- Low electric power consumption for feedback function
- Ready for extended adjustment ranges due to improved radial stiffness
- High adjustment speed and low power consumption due to reduced adjustment forces
- Optimum steering feel due to stiff and backlash-free telescopic shaft design
Features
- Use of Schaeffler key competences, e.g., sheet metal forming, tribology, actors and bearings
- Maximum radial stiffness due to Schaeffler in-house components
- Linear ball bearings optimized for wear resistance and low friction
- Massive angular ball bearing
- Ball guided mechanical end stop, fully scalable
- Telescopic shaft with innovative ball guided system
