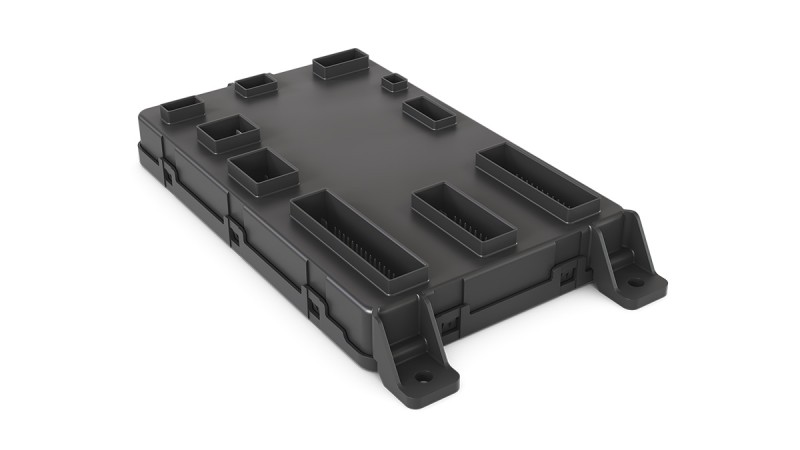

Zone Controller
The Zone Controller serves, connects, controls and powers all kind of control units, sensors and actuators in a defined zone. It acts as a gateway between the highspeed vehicle backbone and local networks and is part of our integration platform for Software Defined Vehicles (SDV).
Highlights
- Versatile communication interface
- Effective power distribution and energy management
- Built-2-Print proficiency
Advantages
- Gateway between high-speed vehicle backbone and local networks
- Direct interface to local sensors and actuators components across all domains
- Power distribution function possible up to 250 A and two supply rails (VDA450)
- Reduces the complexity of the E/E architecture
Features
Core
One or two microcontrollers (IFX Aurix 2G, 3G or others)
Flash size
Up to 20 MB/microcontroller (software-over-the-air flash optional)
Communication interfaces
CAN-FD, LIN, Powerline, PSI5, FlexRay
Multi-port Ethernet switch with 10/100 Mbit/s – 1 Gbit/s
Multi-port Ethernet switch with 10/100 Mbit/s – 1 Gbit/s
Cross domain in-/outputs
Lowside/highside
Charging communication
NACS, CCS1/2, China GB/T, Chademo
