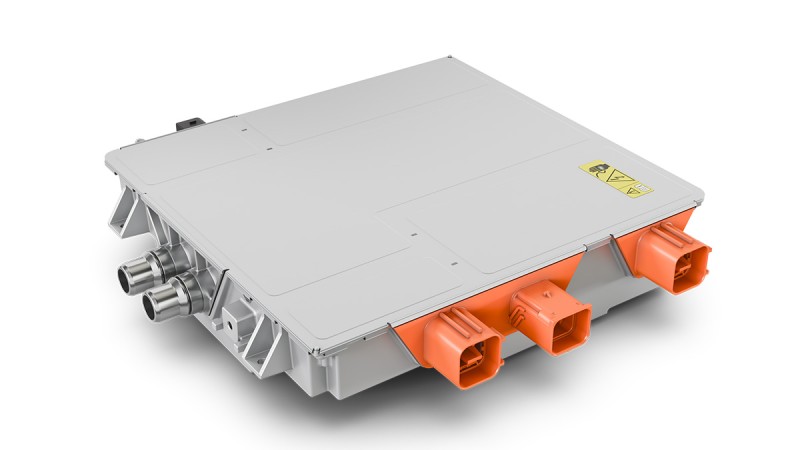

High Voltage Box 3.0
The High Voltage Box 3.0 contains the onboard charger and the high to low voltage DC/DC converter. The High Voltage Box enables bidirectional charging, such as vehicle-to-home (V2H) and vehicle-to-grid (V2G) and supplies alternating current (AC) devices within the vehicle.
Highlights
- High performance and efficiency
- Flexible and customizable
- Reduced size and weight
Advantages
- Designed to meet global charging requirements
- Bi-directional power transfer incl. V2L, V2G, V2H (Vehicle-to-Load, -to-Grid, -to-Home)
- Wide band gap semiconductor technology for high efficiency
- Converter Block allows a scalability for different power and voltage levels
- Improvement of size and weight
Features
Grid Supply ACin
100 V to 277 V
Charging Power
11 kW or 22 kW
Battery Voltage Charger
400 V or 800 V
LV Converter Power
3.7 kW
LV Converter Voltage
400 V and 800 V
Optional Charging Communication
ISO15118, CCS1, NACS CCS2, CHAdeMO, China GB/T, ChaoJi
Size
< 6.5 L
Weight
< 9.5 kg
