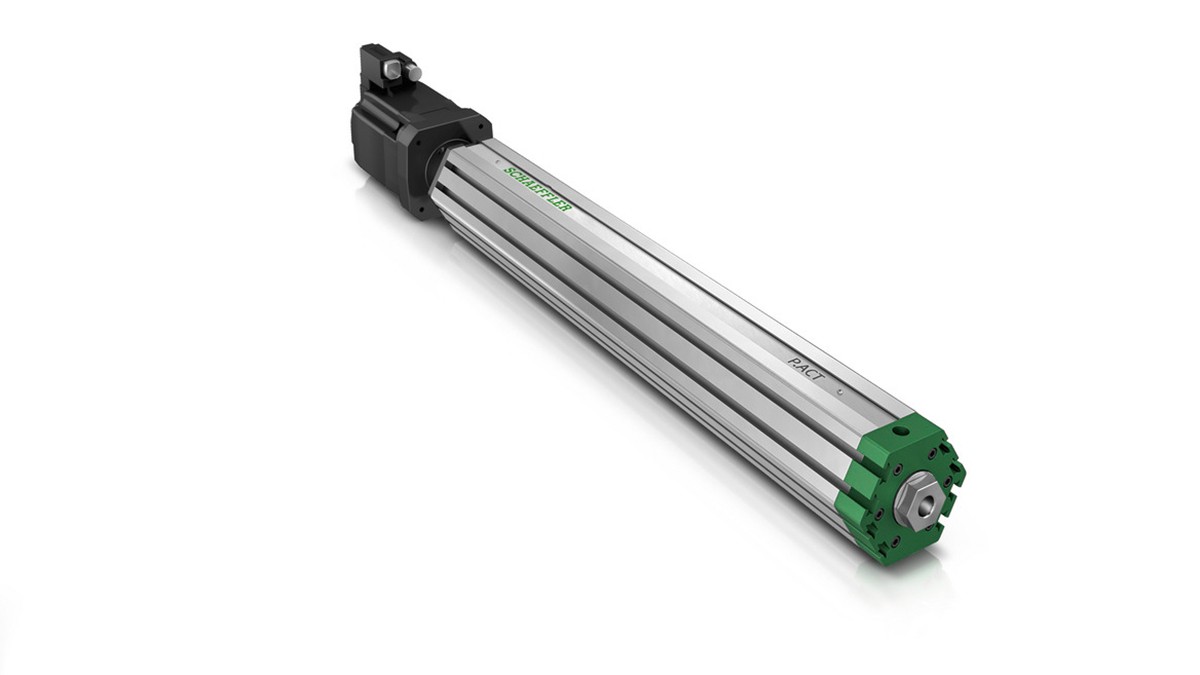

Schaeffler P.ACT, modular actuator platform with outstanding power density for flexible configuration

Modular actuator platform with outstanding power density for flexible configuration

Your benefit:

  • Flexible modular configuration options to match the application
  • Compact design envelope with a very high power density
  • Improved energy balance compared to hydraulic and pneumatic systems
  • Flexible fixing options along the entire actuator length

Publications with further information

Contact

Comprehensive reasons to use P.ACT

Modular flexibility

The modular concept allows customers to flexibly configure and immediately order their desired product.

Higher performance

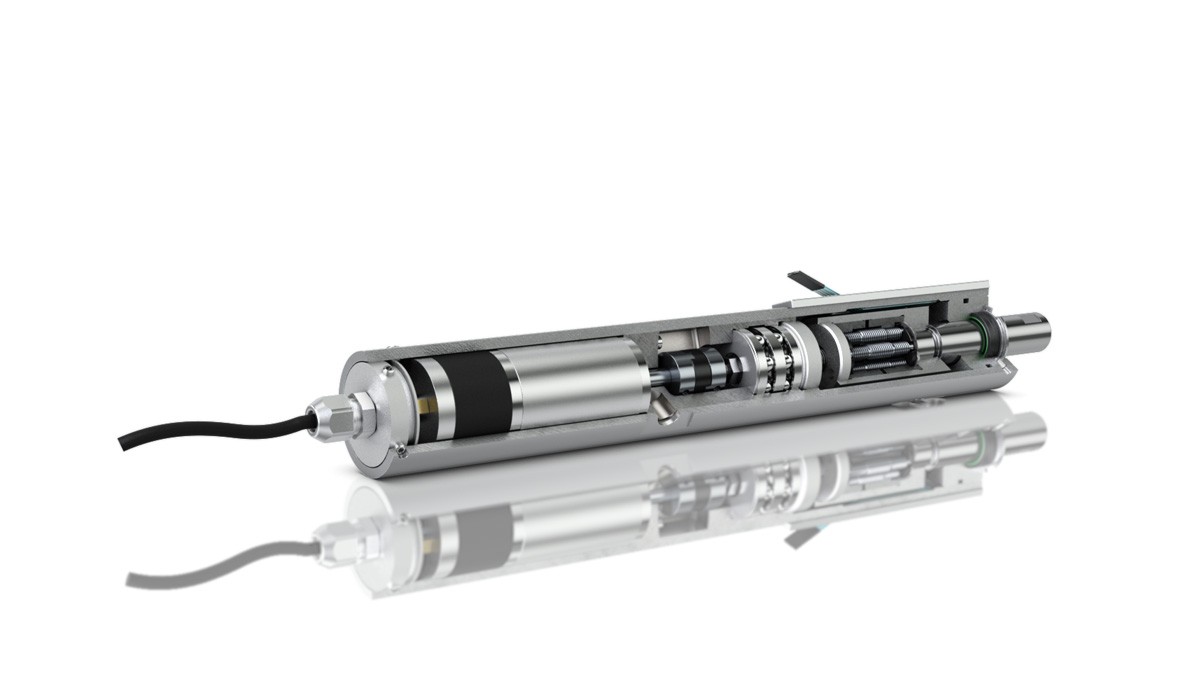

  • Standard: PWG (planetary screw drive) in combination with high-quality axial bearings for highest performance density
  • Option: KGT (ball screw drive) for higher speeds
Improved energy balance
  • Approximately 20% more effective mechanical performance compared to hydraulic systems
  • Approximately 50% more effective mechanical performance compared to pneumatic systems

Features

  • Anodized aluminum housing with robust honeycomb geometry and T-slots along the entire actuator length.
  • Actuator housing with integrated fixing slots
  • Protection class up to IP64S
  • Optional: Linear measuring system, position switch for flexibly setting the switching point, servo motors (BLDC/BLAC), and controller with Ethernet and/or digital I/O
